Description

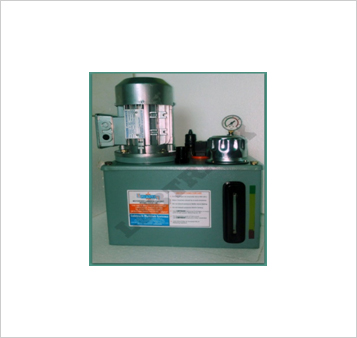

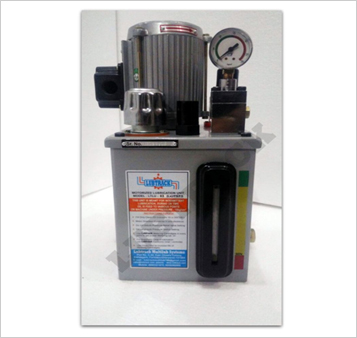

Motorized lubrication units are electric motor driven pumps along with reservoir, oil filler, suction strainer, pressure relief valve, bleed valve etc. & are suitable for single shot automatic Oil & Liquid Grease of Grade ‘000’ lubrication. These motorized lubrication units are to be run intermittently.

During motor ‘ON’ period (normally 5 sec) all metering cartridges eject out required amount of Oil & Liquid Grease at various lubrication points of the machine & during motor ‘OFF’ period (decided by lubrication frequency min.1 minute) these metering cartridges get recharged for next lubrication cycle. These units do not require any return line connection as metered amount of oil is lost in normal running of the machine.

Our Models

S. No.	Model	Details
1.)	LTLS – 03	Reservoir Cap. (Metallic Reservoir)3 Ltrs. Discharge 1 LPM, Motor 0.90W, Single phase, 220 V AC. Pressure setting 15 kg/cm2 with no pressure switch (PS) & no float switch (FS).
2.)	LTLS – 03/PS/FS	Reservoir Cap. (Metallic Reservoir) 3 Ltrs. Discharge 1 LPM. Motor 0.90W, Single phase, 220 V AC. Pressure setting 15 kg/cm2 with pressure switch (PS) & float switch (FS).
3.)	LTLU - 03	Reservoir Cap. (Metallic Reservoir)3 Ltrs. Discharge 1 LPM, Motor 0.12KW, RPM - 1350, Three phase, 415 V AC. Pressure setting 15 kg/cm2 with no pressure switch (PS) & no float switch (FS).
4.)	LTLU - 03/PS/FS	Reservoir Cap. (Metallic Reservoir)3 Ltrs. Discharge 1 LPM, Motor 0.12KW, RPM – 1350, Three phase, 415 V AC. Pressure setting 15 kg/cm2 with pressure switch (PS) & float switch (FS). This Model is also available for Liquid Grease (LG).

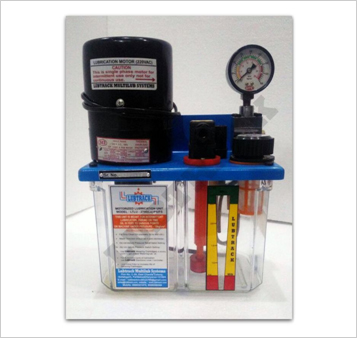

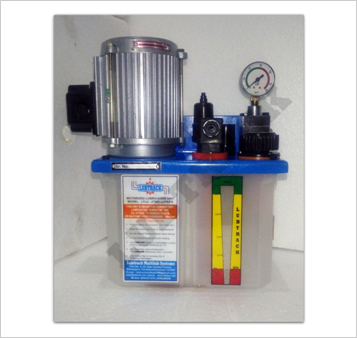

5.)	LTLS - 2700	Reservoir Cap. 2.7 Ltrs with transparent reservoir. Discharge 0.5 LPM, Motor 0.90W, Single phase, 220 V AC. Pressure setting 15 kg/cm2 with no pressure switch (PS) & no float switch (FS).
6.)	LTLS – 2700/PS/FS	Reservoir Cap. 2.7 Ltrs with transparent reservoir. Discharge 0.5 LPM, Motor 0.90W, Single phase, 220 V AC. Pressure setting 15 kg/cm2 with pressure switch (PS) & float switch (FS). This Model is also available for Liquid Grease (LG).
7.)	LTLU - 2700	Reservoir Cap. 2.7 Ltrs with transparent reservoir. Discharge 0.5 LPM, Motor 0.12KW, RPM - 1350, Three phase, 415 V AC. Pressure setting 15 kg/cm2 with no pressure switch (PS) & no float switch (FS).
8.)	LTLU – 2700/PS/FS	Reservoir Cap. 2.7 Ltrs with transparent reservoir. Discharge 0.5 LPM, Motor 0.12KW, RPM - 1350, Three phase, 415 V AC. Pressure setting 15 kg/cm2 with pressure switch (PS) & float switch (FS).
9.)	LTLU – 05/PS/FS	Reservoir Cap. (Metallic Reservoir)5 Ltrs. Discharge 1 LPM, Motor 0.18KW, RPM – 1350, Three phase, 415 V AC. Pressure setting 15 kg/cm2 with pressure switch (PS) & float switch (FS).
10.)	LTLU – 08/PS/FS	Reservoir Cap. (Metallic Reservoir)8 Ltrs. Discharge 1 LPM, Motor 0.18KW, RPM – 1350, Three phase, 415 V AC. Pressure setting 15 kg/cm2 with pressure switch (PS) & float switch (FS).
11.)	LTLU – 20/PS/FS	Reservoir Cap. (Metallic Reservoir)20 Ltrs. Discharge 3 LPM, Motor 0.18KW, Three phase, 415 V AC. Pressure setting 15 kg/cm2 with pressure switch (PS) & float switch (FS).
12.)	LTLU – 30/PS/FS	Reservoir Cap. (Metallic Reservoir)30 Ltrs. Discharge 6 LPM, Motor 0.37KW, Three phase, 415 V AC. Pressure setting 20 kg/cm2 with pressure switch (PS) & float switch (FS).
